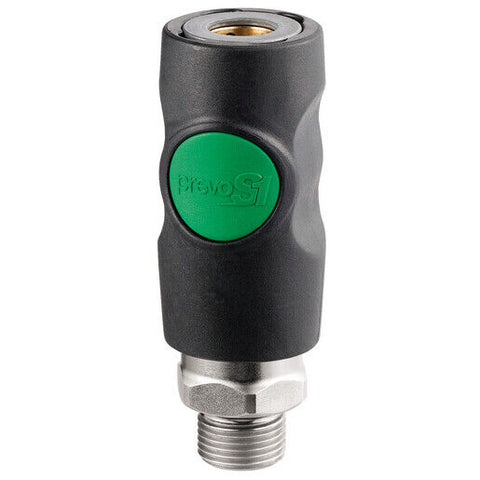

The Prevo S1 Series, is a long term investment. It combines high-tech design and performance to stand up the most demanding jobs. Complete control over decompression and disconnection in total safety: no risk of hose whip or accidental disconnection, eliminates risk to users and protects surrounding equipment and production pieces from damage.

• Complies with ISO 4414 standard.
• Silicone-free manufacturing: reduces the risk of contaminates in the air line during paint or varnish applications.
• Anti-static construction: external dust will not be attracted to painted or varnished surfaces or create static electricity.
• ATEX: confirms the safety of the prevoS1 coupling in potentially explosive environments (gaseous, paint booths, etc.).
• Equipment meets the requirements of zones classified 1 and 2 (gas) and 21 and 22 (dust).

This coupling is interchangeable with 25 Series, XF & Euro Coupling

Specifications-

Operating Pressure: 2-12 BAR

Temperature Rating: -15c to +70c

Flow Rate at 6 BAR (820L/Min)

Passage ID: 7.4mm
